Description
Who this attachment is for and what it settles

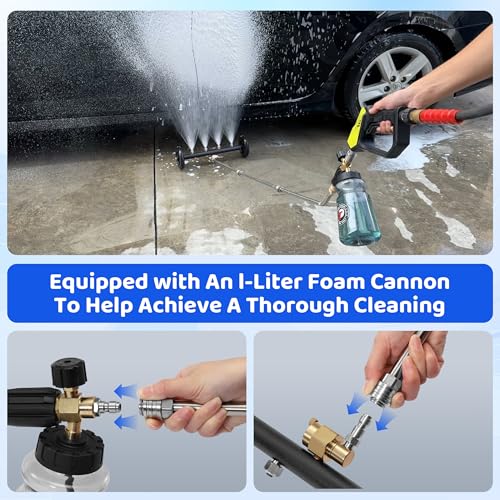

The Tool Daily JT052-6 is the most versatile attachment in this catalog, and that is a claim about function rather than quality. It is an undercarriage cleaner bar, a water broom and a foam cannon, and Tool Daily lists five working combinations: undercarriage cleaner with or without the foam cannon, surface cleaner with or without the foam cannon, or the foam cannon on its own.

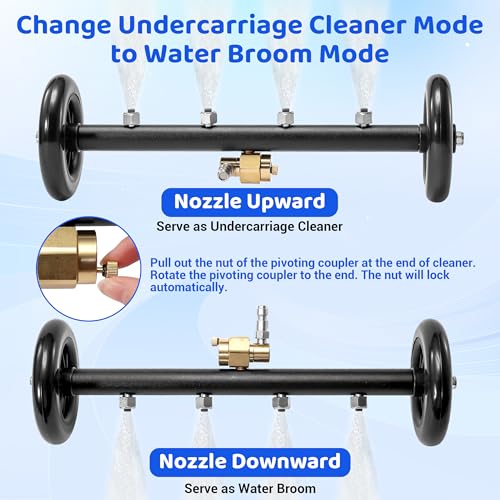

Aimed upward it rolls under a vehicle and sprays the underside, which removes the need to lie on the ground aiming a jet toward your own face. That matters on salted roads, because salt left on an underbody is what turns surface rust into structural rust. Angled downward it becomes a water broom that sweeps loose sand, leaves and light soil off a sidewalk or driveway. Switching between them is mechanical: pull out the nut on the pivoting coupler at the end of the cleaner, rotate the coupler to the end, and the nut locks automatically.
Two pressure ratings, not one
This listing does something unusual and correct: it publishes a separate rating for each part of the tool. The undercarriage cleaner has a working pressure of 1500 to 4000 PSI, with 2500 PSI or higher stated as giving a better cleaning effect. The foam cannon has a maximum pressure of 3600 PSI.
Those two figures are not interchangeable, and the lower one governs whenever the foam cannon is fitted. That is also why the maximum pressure field in the specification block reads 3600 PSI rather than 4000: the record reports the ceiling of the whole assembly, which is set by its weakest rated component. Any assembly is limited by its lowest rated part, so a machine producing more than 3600 PSI should not be run with the foam cannon attached even though the bar itself is rated higher.
The floor of 1500 PSI is the number to check before ordering. A water driven bar is turned and lifted by the reaction of its own jets, so below a certain output it will not shift what it is aimed at, and plenty of compact electric machines sit at or below that line. No minimum flow figure is published anywhere, which is the gap that remains, and flow is what carries loosened material away once the jets have broken it up.
The nozzle instruction that is easy to miss
Tool Daily buries a genuinely important setup requirement in the middle of a bullet, and it is worth pulling out. When the foam cannon is in use, the four nozzles on the undercarriage bar must be the brass ones, because the stainless steel nozzles cause a leak at the joint between the foam cannon and the wand. To run without the foam cannon, the four nozzles have to be swapped back to stainless steel.
In other words, changing modes is not only a matter of rotating the coupler. It also means changing four nozzles, and getting it wrong produces a leak rather than a failure, which is the sort of fault people spend an afternoon chasing. Four brass replacement nozzles are supplied for exactly this reason.
What is in the box

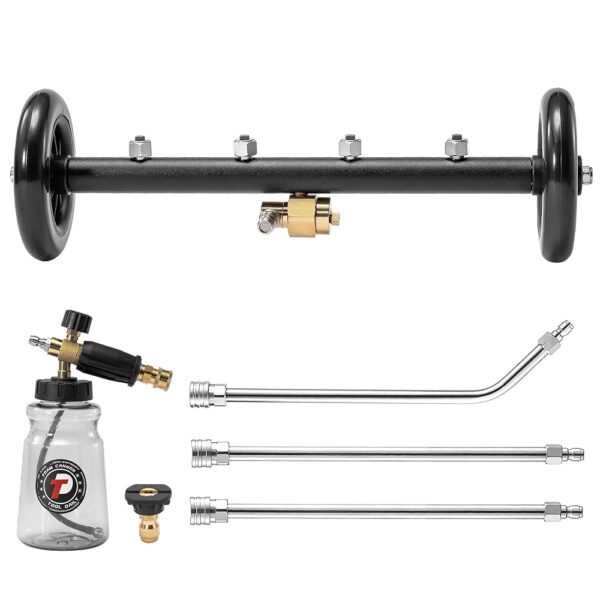

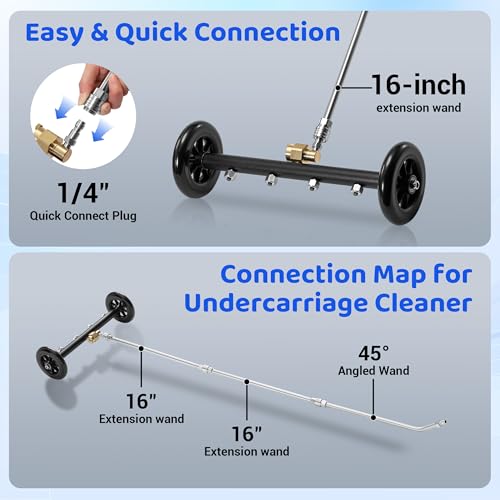

The kit is the two in one undercarriage unit measuring 15.5 inches long and 4.9 inches high, one 45 degree angled extension wand, two 16 inch extension wands, a 1 litre foam cannon, one black spray nozzle and four brass replacement nozzles. All parts connect with quarter inch quick connectors. Three wands is enough reach to push the bar well under a wide vehicle while standing upright, which is more than the two wand kits supply.
Note that the product title describes a 16 inch attachment while the package bullet and the specification block both give the unit as 15.5 inches long. The two figures do not match.
Using it safely
In undercarriage mode this tool aims high pressure water upward from ground level, and what comes back down carries road grit, rust flakes, dried mud and whatever chemistry the underbody has collected. Eye protection is not optional, and closed footwear and long sleeves are sensible. A pressure washer jet can force water and surface contaminants through skin, and an injection injury needs immediate medical attention even when the entry wound looks small. Never aim it at a person or an animal.
Do not get under the vehicle to check progress while the machine is running, and never work under a vehicle supported only by a jack. Keep the bar moving rather than dwelling in one place, because high pressure water at a fixed point drives moisture into electrical connectors, forces grease out of sealed joints and lifts underbody coating at an edge that has already begun to fail. Let the underside dry properly rather than parking it wet in a closed garage.
In water broom mode, remember that a broom moves debris rather than containing it. Unlike a shrouded surface cleaner there is no skirt keeping the spray underneath, so plan the direction of travel so material is pushed away from doors, windows and anything already cleaned.
Limits and gaps in the listing data
The description field is empty, so the six feature bullets are the whole record. No wheels or casters appear anywhere in the specifications or the bullets, which is a meaningful omission on a bar meant to roll under a vehicle. Comparable tools list their casters explicitly. Confirm with Tool Daily whether the bar rides on casters or slides.
Also unpublished: the minimum flow requirement, the nozzle orifice size, whether the tool is rated for hot water, the maximum inlet water temperature, the warranty term and a UPC. The tank volume field reads 1 litre, which for once is correct and describes the foam cannon rather than a stray flow figure. The power source field reads hydraulic_powered, which is at least descriptive for a water driven tool.
Country of origin is China, the model is JT052-6 and the weight is 5.5 pounds. Amazon showed a rating of 4.3 out of 5 at capture, with no rating count present in the record, ranked 4,721st in Patio, Lawn and Garden, 31st in pressure washers and 35th in pressure washer accessories.
Alternatives worth comparing
The closest comparison is the VIGRUE 24 inch attachment review, which offers the same two mode switch on a wider 24 inch bar with 7 nozzles but no foam cannon. Among single purpose tools, the RIDGE WASHER 24 inch review and the RIDGE WASHER 16 inch review both name their casters and their nozzle counts, and the M MINGLE undercarriage cleaner review covers the narrowest option at 13 inches.
Machines capable of driving any of these sit in the electric pressure washer category, with the higher output units in the gas pressure washer category. Gas machines emit carbon monoxide and must never be run indoors or in a garage, including with the door open.
Who should buy it and who should not
Buy it if you want one purchase covering an underbody rinse, a driveway sweep and a foam cannon, your machine works above 1500 PSI, and you are comfortable swapping four nozzles when changing modes. Do not run it with the foam cannon on a machine above 3600 PSI. Confirm whether casters are fitted before ordering, since the listing never mentions them, and confirm the flow requirement if your machine sits near the floor.
