Description
What this product is
This is a replacement cuff, not a blood pressure monitor. It is an extra large upper arm cuff supplied with seven connectors, intended for fitting to an automatic monitor you already own, and it makes the widest size claim of any cuff in this catalog.

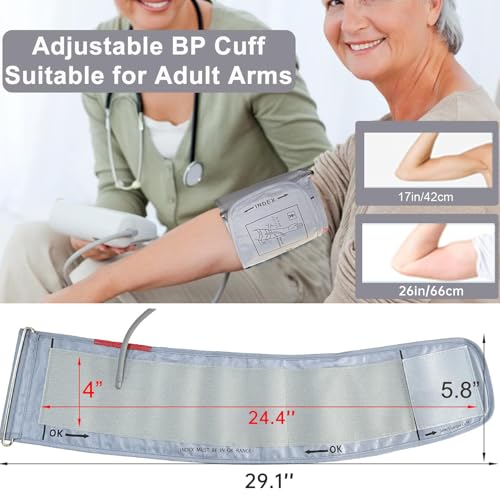

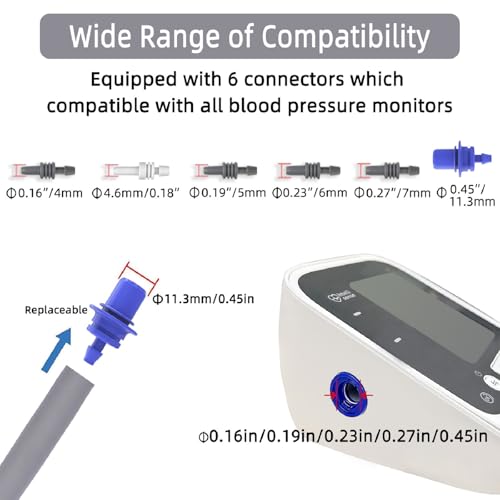

Alcarefam states a circumference range of 9 to 26 inches, given as 22 to 66 cm, and the model designation BD66 refers to that upper figure. The connectors supplied are listed as 4 mm, 4.6 mm, 5 mm, 6 mm, 7 mm, 7.2 mm and 11.3 mm. The listing states a one year warranty with free replacement or refund.
The size claim, and why 22 to 66 cm needs thinking about
A single cuff spanning 22 to 66 cm is a very large claim and it deserves scrutiny rather than acceptance. A blood pressure cuff works because the inflatable bladder inside it covers an appropriate proportion of the arm’s circumference. Too little coverage and pressure is not transmitted properly to the artery underneath, which is precisely the failure a correctly sized cuff exists to prevent.
A cuff long enough to fasten around a 66 cm arm has a long bladder, and that same bladder wrapped around a 22 cm arm will overlap itself heavily. The listing publishes no bladder length or width, which is the figure that would let anyone judge how it behaves across that span. Treat the range as the outer limits of what will physically fasten rather than as a promise of equivalent performance throughout. If your arm falls inside a standard range, a standard cuff is the better purchase, and this is a cuff for people whose arms genuinely are not served by anything else.
Measure the circumference of your bare upper arm with a cloth tape, midway between elbow and shoulder, before ordering. Our stored band size attribute records only 26 inches, dropping the lower bound, so use the full stated range. Check the index markings printed on the cuff when it arrives, since those show whether your arm falls inside the marked window when the cuff is wrapped.
Compatibility, and a claim that does not make sense

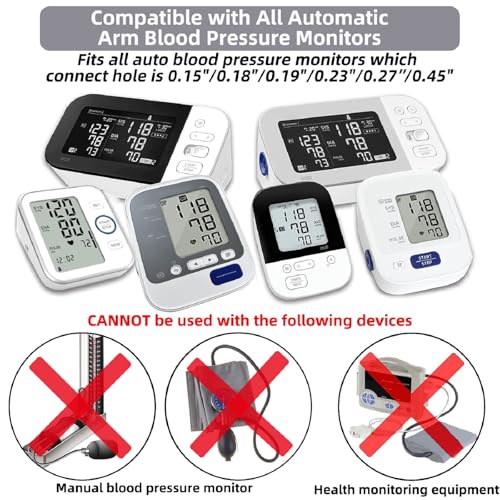

The product title states compatibility with Omron monitors and the feature text states suitability for most brands, without naming a single specific model anywhere. The listing does add a sensible note: if the supplied connector does not match, and your existing connector is removable, you can transfer the original one.
One bullet needs correcting rather than repeating. The listing states that the replacement cuff is easy to independently calibrate in order to enhance precision. A cuff cannot be calibrated. It is a fabric sleeve containing an inflatable bladder, with no adjustable element and nothing to set. Calibration, where it applies at all, belongs to the monitor. Whatever that sentence was meant to convey, it is not a feature and it should not influence a purchase.
The broader point about third party cuffs applies here as everywhere. A monitor is assessed as a system, the device together with the cuff it shipped with, and fitting a cuff from another manufacturer produces a pairing nobody has assessed together, even when the connector seats perfectly and the size is right. Where your monitor’s own manufacturer sells a cuff large enough for you, that is the better option. Where it does not, which is the situation this product exists for, a correctly sized third party cuff is better than persisting with one that is far too small.
Materials and care

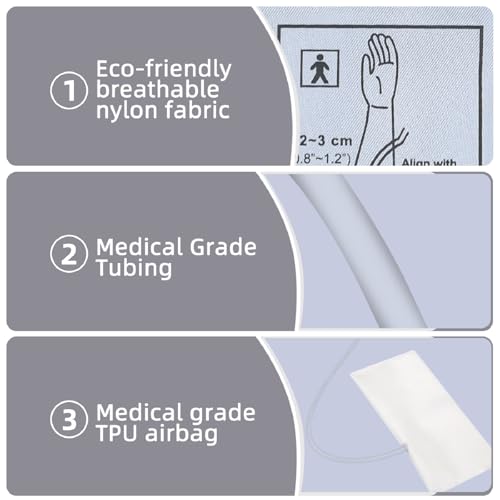

The cuff is described as nylon fabric with a non toxic, tasteless TPU air bladder, with soft hook and loop fastening described as not catching arm hair. That last point matters more than it sounds on a very large cuff, which has a long fastening area.
Wipe the inner surface with a damp cloth periodically and let it dry fully before storage, since a cuff is worn against bare skin. Do not soak it or machine wash it: water trapped inside the bladder is hard to remove and will corrode the connector. Store it without folding the tube sharply at the same point each time.
Using it correctly, and what the readings are for
Fit the cuff on a bare upper arm rather than over a sleeve. Work a large cuff up the arm rather than sliding it down from the shoulder, keep the lower edge clear of the elbow crease, and let the tube run down the inside of the arm toward the hand. Tighten to snug rather than tight, with about enough room to slide a finger under the edge. Then sit with the back supported and the feet flat on the floor, with the arm supported so the cuff sits at about the height of the heart, and stay quiet and still while the measurement runs.
Whatever monitor this is fitted to, the readings are a record rather than an answer. What a reading means, whether a pattern across readings is significant, and whether anything about your care should change are questions for a healthcare professional who knows your history and your medication. A home blood pressure monitor does not replace professional medical care, and no reading from one should be used to start, stop or alter treatment on your own. If you swap to this cuff partway through a series of readings you are keeping for a clinician, note the date you changed it, because a step in the numbers that coincides with a new cuff is worth flagging rather than treating as a change in you.
Limits and gaps
The stored components field records the package as a 66 cm cuff and six connectors, while the feature text lists seven connector sizes. That is a small contradiction but it is the sort worth checking on arrival. No bladder dimensions are published, no specific compatible monitor model is named, and the calibration claim described above is incoherent.
There are also two claims in our own earlier summary of this product that we have removed. One described the accuracy of the readings as impressive even against professional devices, which is not something the listing supports and not something an accessory can deliver on its own. The other described extra long tubing, which does not appear anywhere in the listing data we hold.
Alternatives worth comparing
Within the same brand, the Alcarefam BD42 cuff is the smaller sibling and a better match for an ordinary large arm. Among competing extra large cuffs, the ELERA XXL cuff claiming 9 to 24 inches, the Maymocon XXXL cuff and the Auqty XXL cuff are the direct comparisons. If your monitor is an Omron on the supported list, the Omron Wide Range D Ring cuff is the manufacturer’s own part, though it stops at 17 inches. Our index of home monitors and cuffs lists what each publishes.
Who should buy it and who should not
Buy it if your upper arm is genuinely beyond the range of ordinary large cuffs, one of the seven connectors matches your machine, and you have checked that your monitor’s own manufacturer does not offer a cuff that fits you. Do not buy it as a general purpose replacement for an average arm, and do not attach any weight to the claim that the cuff can be calibrated, because it cannot be.
